Octavia Built-in Large Oval Bath

Developed for those who love to bathe, the Octavia large oval bath sets a sumptuous standard for the more generously sized bathroom. Considerably more spacious than most conventional baths, it is double-ended and its waste is offset to one side so the main bowl area is left smooth and empty.

Category:

Description

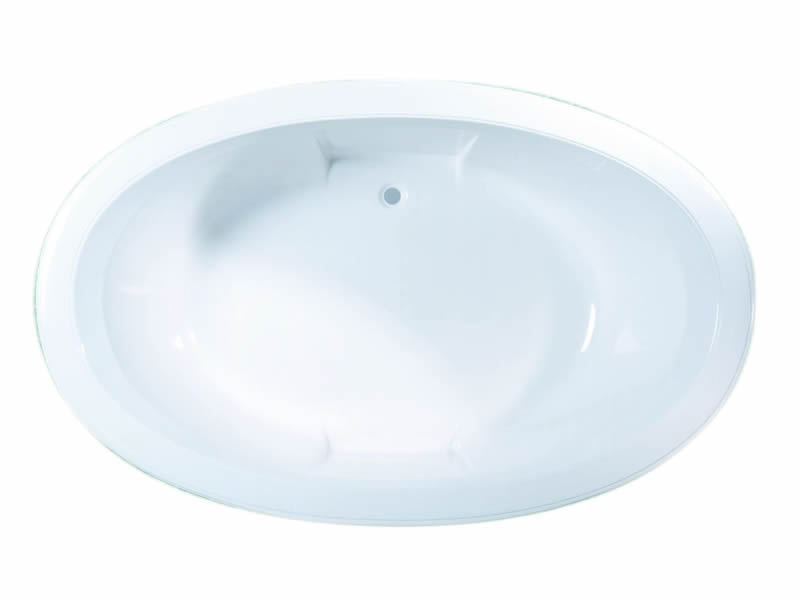

The Octavia Large Oval Bath

The large oval bath design has a total capacity of 373 litres (82 Imperial gallons or 98 US gallons) and the curving interior means there is plenty of space for comfortable shared bathing. It is also an excellent bath for Hydrotherapy; the addition of a Cabuchon Hydrotherapy system can help to create the ultimate luxury bathing experience.

Additionally, the beautifully sculpted rim offers a level of detail and precision that could only be achieved using Cabuchon’s own specially developed material, FICORE®, and it lends itself particularly well to the use of colour or coach-striping, as illustrated in the photographs above.

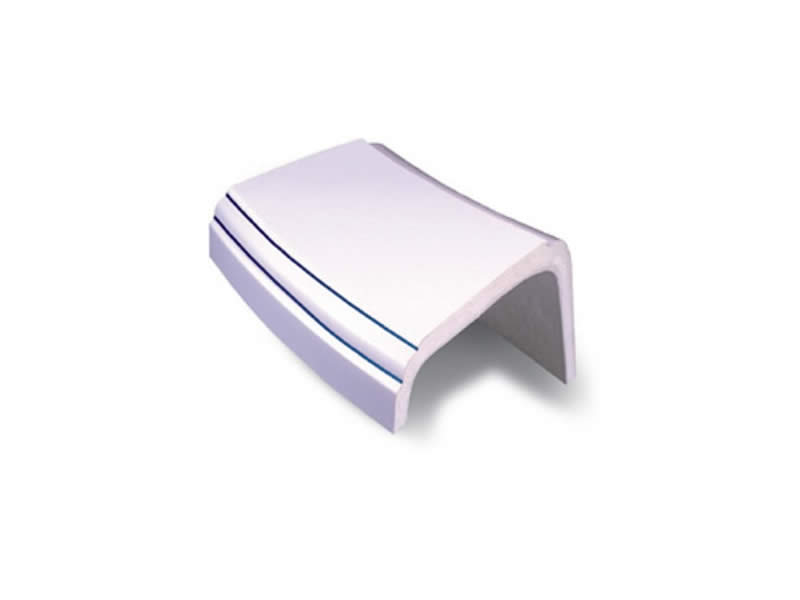

The Octavia’s contoured rim features a double radius detail on the exterior face and a single radius on the interior bowl rim.

Access and fitting:

As an oval bath, the Octavia can be turned on its side to pass easily through a standard door. Its height of just 512mm (20¼″) compares against a typical door width of around 750mm / 29½″.

Taps and other controls can be fitted on the bath rim, on the deck, or on an adjacent wall. Spouts and fillers should not be placed at one end of the bath, since this could render one of the two seats uncomfortable and potentially unusable.

The Octavia is supplied with the waste and overflow holes pre-cut. However, it is not normally supplied with holes pre-drilled for any spouts, taps or hydrotherapy controls. Fitting such items is best carried out on site, when the customer has the benefit of seeing the bath in situ. At that time, the customer can instruct the installer exactly where to place each item.

The Octavia large oval bath is supplied with four screw-threaded feet, which are height adjustable, with a range of 50mm (2″). Their total height can be set between 90mm and 140mm (3½″ and 5½″). These adjustable feet are factory-fitted and set to spread the bath’s weight evenly. During installation on-site, great care must be taken if the feet are subsequently adjusted to accommodate a sloping or uneven floor. For security, stability and durability, it is essential that the whole of the bath’s weight rests squarely and evenly on the feet. No weight at all should rest on the rim or body of the bath, nor (where present) on any side panel.

Download the detailed Octavia Specification Sheet. (PDF)

Dimensions:

External length: 1905mm / 75″
External width: 1168mm / 46″
External height: 512mm / 20¼″
Internal depth: 505mm / 20″

Capacity: 373 litres. (82 Imperial gallons / 98 US gallons.)

Full internal and external dimensions are shown on the Octavia Specification Sheet.

Material: FICORE®

Colour choice:

The precise lines of the Octavia’s rim allow for attractive coach-striping and other coloured effects.

Cabuchon baths can be supplied in literally any colour. For no extra charge, Cabuchon will match the colour of another manufacturer’s established, standard sanitaryware, and it can also match many discontinued sanitaryware colours. For a small extra charge, customers can have their bath made with special colour effects such as the coloured rims or coach-striping shown above.

The Octavia large oval bath is suitable for the inclusion of a Hydrotherapy system.
